How to maintain and solve common problems of tempered laminated glass balustrades partitions?

2025-07-09 09:15:17

The maintenance and common problems of tempered laminated glass balustrades partitions need to be combined with safety regulations and daily management. The core points are as follows:

Common problems and solutions

Self explosion risk: caused by impurities in nickel sulfide or thermal stress. Select 3C certified glass and apply explosion-proof film to restrain fragments; Reserve a buffer gap for the frame during installation (recommended to be ≥ 5mm) to avoid thermal expansion and contraction compression.

Structural deformation/unevenness: Uneven installation stress leads to wavy or bending deformation. It is necessary to control the thickness of the glass (using ≥ 16.76mm tempered laminated glass when the clearance height is greater than 5m), ensure the levelness of the frame, and regularly check the tightness of the connectors.

Edge breakage and delamination: The edges and corners are easily damaged by impact, and the film is prone to separation when exposed to moisture. Strengthen corner protection design (such as metal edging), using low moisture PVB film; Regularly replace the sealing strip to keep the joint dry.

Loose connectors: Potential hazards caused by welding defects at the base of railing columns or insufficient bolt shear force. The inner lining steel profile needs to be fully welded with the embedded parts, and the bolt shear strength (non torque) should be calculated according to the bending moment.

Maintenance measures

Cleaning: Clean with neutral detergent and soft cloth every week, and avoid acidic and alkaline solvents; Timely clean up oil stains (can be softened by applying cling film and removed).

Inspection: Check the sealing of the rubber strip, the firmness of the connecting parts, and the scratches on the glass surface every month; Key inspections will be conducted on the corrosion of the framework and loose bolts in the exposed areas.

Usage guidelines: Avoid collisions with hard objects; Gently push and pull the moving parts; Control sudden changes in environmental temperature and humidity (such as direct air conditioning).

Safety reminder: When the clearance height is ≥ 24m, the railing height must be ≥ 1100mm and tempered laminated glass must be used; It is recommended to add metal poles to share the load when it exceeds 5m.

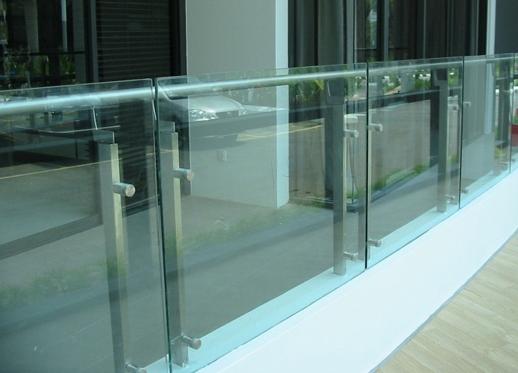

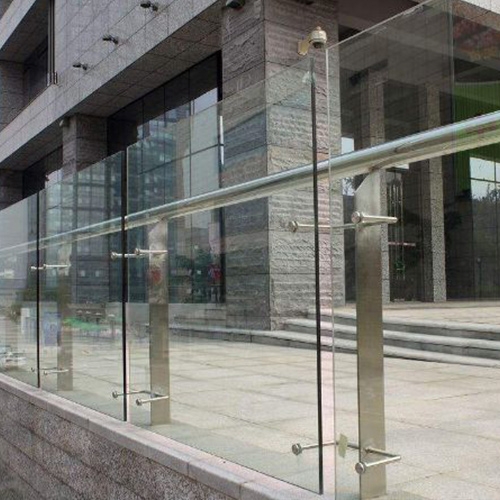

Longbo Tempered laminated glass For Balustrades Partition Wall

Thickness:8-25 mm

Glass options: CleAR Glass, Bronze/Grey Tinted Glass, Ultra CleAR glass

System function options: Drainage system(outdoor), LED light, Handrail/Frameless

More product details：https://longboglass.com/product/8.html
